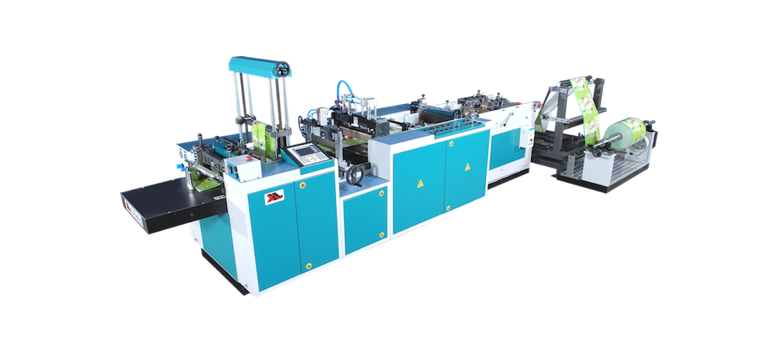

Three Side Seal Pouch Making Machine
DESCRIPTION
This Machine converts a lay flat sheet of Laminated film of PET-PE , BOPP-PE into three side sealed pouches with various attachments. It’s a high-speed pouch machine with a maximum speed of 150 cycles / min.
FEATURES
- > High Speed up to 150 strokes/min
- > Servo Motor for Indexing and Accuracy
- > Microprocessor Controlled with Digital Display
- > Keyboard Setting for speed, Size & Count
- > Backlit Display for Operating Parameters
- > Photocell Control to Convert Printed Film
- > Vertical Unwind stand
- > Two Continuous Lateral Sealing Jaws
- > One set Cross Sealing Jaws
- > User Friendly Single Control Panel
ATTACHMENTS
The following optional attachments / tools are available to add features to the machine and make variety of bag structures:

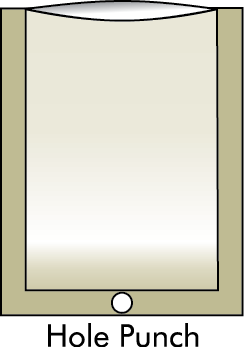

- > Hole punch

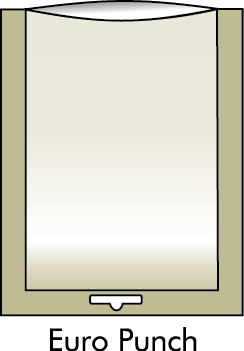

- > Euro punch
- > Web Aligner
- > Automatic Tension control with load cell and digital display
- > K-seal
- > Pneumatic Cross perforation
- > Pneumatic Cooling station
- > Handle punch

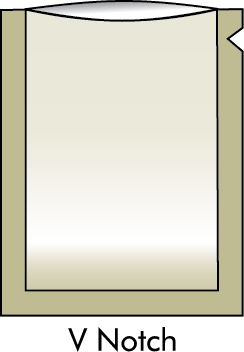

- > V notch

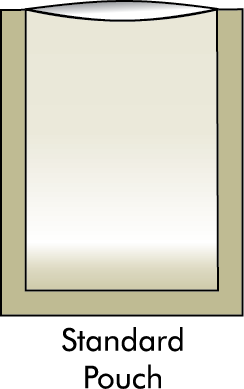

TYPES OF BAGS THAT CAN BE MADE
SPECIFICATIONS
