High Speed T-shirt Bag Making Machine (Single Track)

High Speed T-shirt Bag Making Machine (Single Track)

HSP-VX 450 Delta (single track)
DESCRIPTION

The High speed Automatic T-shirt bag making machine Model HSP-VX-450 Delta is a high speed bag making machine to convert up to 200 bags / minute. It is possible to convert 1 Pre-Gusseted Tubular Roll of maximume width of upto 450mm

The film is Sealed and Cut using a Hot Knife and stacked together Automatically into bunches of 50 bags. Once the Batch count is reached, the Gripper function on the machine will take the Bunch of bags forward to the Online Punching station where the Handle Punching is done and you get the ready finished bags on the Auto Conveyor

Another Economical Model – HSP-V 450 Delta is also available where the main machine features remain the same but it does not come with an Online Punching system. You get Bunch of 50 bags Blocked together. The Punching of the T-shirt type handle has to be done Offline manually using a Hydro Pneumatic Punching press

FEATURES
  • > High Speed up to 200 strokes / min.
  • > Finished Bags ready for Packing
  • > Servo Motor for Indexing and Accuracy
  • > Stacking & Conveying of Finished Bags
  • > Automatic Removal of Cut-out Waste
  • > On-Line Blocking, Punching and Conveying
  • > Photocell to Convert Printed Web
TYPES OF BAGS THAT CAN BE MADE

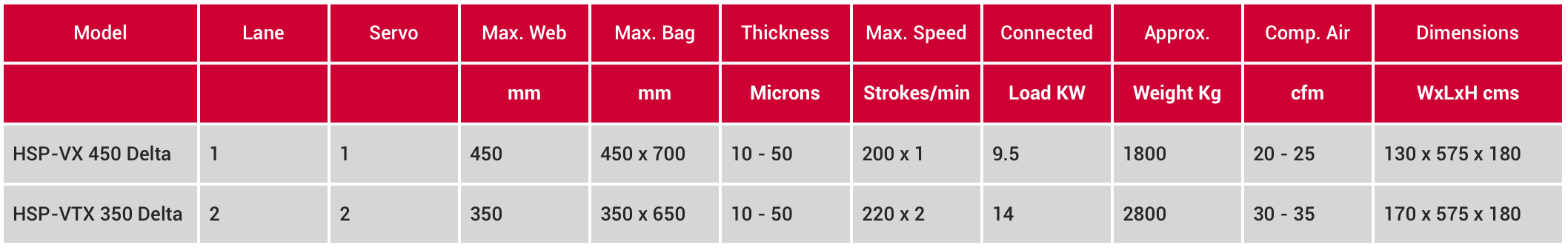

SPECIFICATIONS
